Wholesale Price Jet Mud Mixer Reliable and Wear-Resistant

Short Description:

Jet Mud Mixer is composed of mud mixing hopper and centrifugal pump. Venturi hopper is also called mud hopper. TR solid control is an exporter of Drilling Mud Mixing Hopper.

Drilling Mud Mixing Hopper is specialized equipment used in the solid control process. Its purpose is to configure and aggravate the drilling fluid. This results in changes in the density, viscosity, and pH levels of the drilling fluid. The drilling fluid and other drilling additives are appropriately blended and homogenized. Mud hopper is crucial that the drilling fluid materials and the addition agents are first entered into the mud tank as otherwise, they could precipitate or conglobate. The Jet Mud Mixer prevents that from happening.

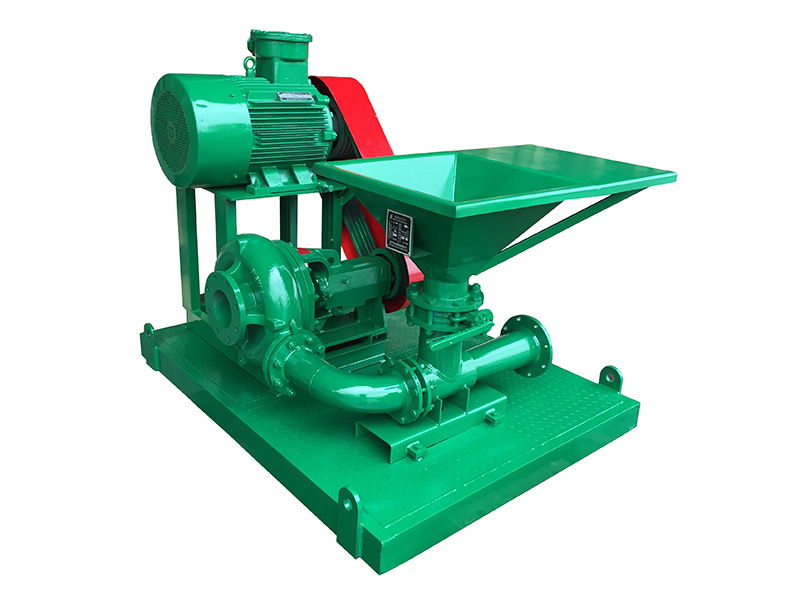

Drilling Mud Mixing Hopper is safe and stable solid control equipment that can be moved conveniently without any issue. It contains a centrifugal pump, venturi hopper, base, and pipelines. Centrifugal pump is fixed on the base and operated via an electric motor. The fluid is entered via the impeller. Mud Hopper mixes the additives into the system and is connected with the pump via the pipelines. All of these are fixed with the base for smooth functioning. Jet Mud Mixer eases life and the electric motor is of the best quality.


Product Detail

Product Tags

With advanced technologies and facilities, strict high quality control, reasonable value, exceptional company and close co-operation with prospects, we’ve been devoted to offering the very best worth for our consumers for Wholesale Price Jet Mud Mixer Reliable and Wear-Resistant, In a word, when you choose us, you choose a ideal existence. Welcome to visit our factory and welcome your get! For even further inquiries, remember to usually do not hesitate to make contact with us.
With advanced technologies and facilities, strict high quality control, reasonable value, exceptional company and close co-operation with prospects, we’ve been devoted to offering the very best worth for our consumers for China Drilling Rig and Petroleum Equipment, With all these supports, we can serve every customer with quality product and timely shipping with highly responsibility. Being a young growing company, we might not the best, but we’ve been trying our best to be your good partner.

Basic Information

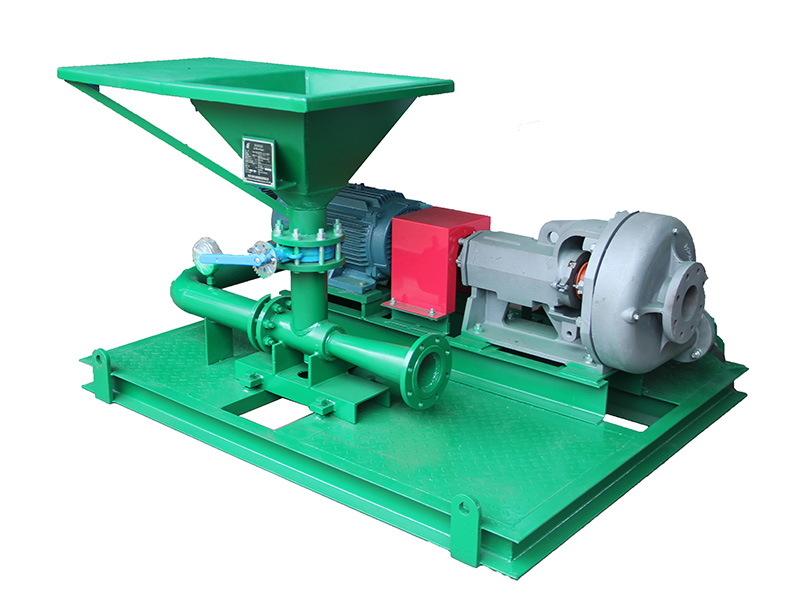

TRSLH series Jet Mud Mixer is special equipment to prepare and increase the drilling fluids weight by adding and mixing bentonite, change the fluid density, change the mud density, viscosity, and dehydration. The effect is more prominent matching with Shear Pump. Jet Mud Mixer is a unit used together with the solids control system for petroleum grilling and horizontal directional drilling. The unit includes one sand pump, one jet mixing hopper and one jet mixer that are installed in a base with pipe valves.At the same time, we can make Twin-Jet Mud Mixer according to the user requirements.
Mixing hopper is used to prepare or aggravate drilling fluid,change the density,viscosity,water loss of the drilling fluid. If put the drilling fluid materials and chemical addition agents into the mud tank directly,the materials and agents may precipitate or conglobate,with the decive,the materials and agents can be mixed well.

dav
dav

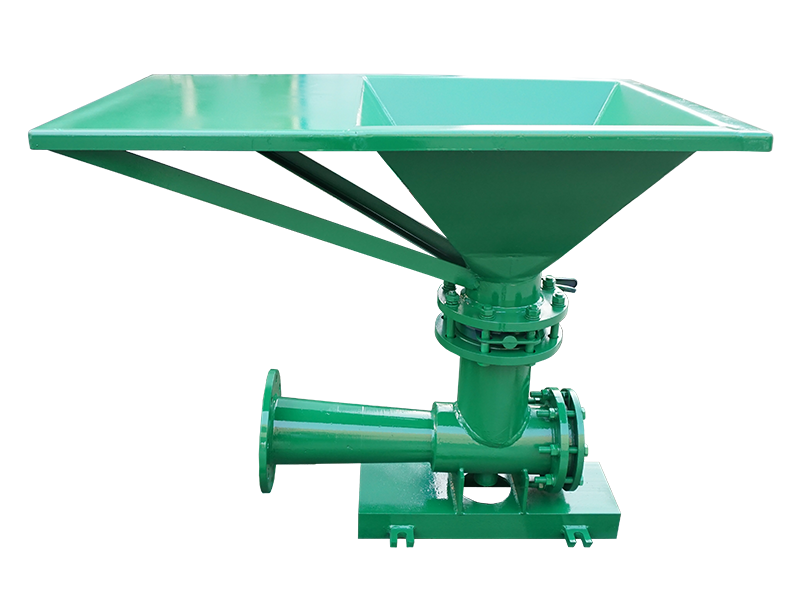

Jet-Mud-Mixer2

Advantages of Drilling Mud Mixing Hopper

  • Hoppers can be Venturi hopper.
  • Ideal design on sufficient working pressure make pumps higher performance.
  • New style with better feasibility under different working condition.
  • Meet drilling fluids weighting demand for 1500m ~ 9000m well drilling.
  • Hopper and pump connected with pipelines. More flexible on hopper and pump quantities.
  • Centrifugal pump is mechanical seal type. Reliable and durable.
  • Easy to operate and maintain.

Specifications

Model

TRSLH150-50

TRSLH150-40

TRSLH150-30

TRSLH100

Capacity

240m3/h

180m3/h

120m3/h

60m3/h

Centrifugal Pump

TRSB8X6-13J(55KW)

TRSB6X5-12J(45KW)

TRSB5X4-13J(37KW)

TRSB5X4-13J(37KW)

Working Pressure

0.25~0.40Mpa

0.25~0.40Mpa

0.25~0.40Mpa

0.25~0.40Mpa

Feed Inlet

DN150

DN150

DN150

DN150

Nozzle Dia.

50mm

42mm

35mm

35mm

Hopper Size

600 X600m

600 X600mm

600 X600mm

600 X600mm

Burden Speed

≤100kg /min

≤80kg /min

≤60kg /min

≤60kg /min

Mud Density

≤2.8g/cm³

≤2.4g/cm³

≤2.0g/cm³

≤2.0g/cm³

Mud Viscosity

≤120s

≤120s

≤80s

≤80s

Dimension

2200×1700×1200

2200×1700×1200

2000×1650×1100

2000×1650×1100

Weight

1680kg

1400kg

1280kg

1100kg

6 inch high shear low pressure mud hopper
Complete with 2 in(also 1.5 inch special lower volume nozzle, venturi hopper, funnel, sack table, 6 inch butterfly, valve all mounted on a base. This hopper with 2 inch nozzle handles 800-900 pounds of barite per minute. Three(3) inch male NPT inlet and 6 inch weld neck outlet. (Other end types are available). Unit primed with carbozinc and painted with finish coat.

4 inch high shear low pressure mud hopper
Complete with 1.5 inch nozzle, venturi hopper, funnel, sack table, 4 inch butterfly, valve all mounted on a base. The hop-per with 1.5 inch nozzle handles 5-600 pounds of barite per minute. Two (2) inch male NPT inlet and 4 inch weld neck outlet. (Other end types are available). Unit primed with carbozinc and painted with finish coat.

Model Work Press Inlet Size Hopper Diameter Weight
TRSL150-50 0.2~0.4mPa DN150 600×600mm 170kg
TRSL150-40 0.2~0.4mPa DN150 600×600mm 170kg
TRSL150-30 0.2~0.4mPa DN150 600×600mm 165kg
TRSL100 0.2~0.4mPa DN100 500×500mm 140kg

Jet mud mixer for drilling fluids solids control

Drilling Mud Mixing Hopper in the mud system is used to mix mud. In the oil and gas drilling plays a very important role. The centrifugal sand pump in horizontal directional crossing and role in the process of slurry shield also no less.

TR solid control is an exporter of Drilling Mud Mixing Hopper. We are an exporter of drilling fluids venturi hopper. TR solids control is the designed,selling,production,service and delivery of Chinese based manufacturer. We will provide the high quality mud hopper and best service. Your best jet mud mixer hopper start from TR solids control.With advanced technologies and facilities, strict high quality control, reasonable value, exceptional company and close co-operation with prospects, we’ve been devoted to offering the very best worth for our consumers for Wholesale Price Jet Mud Mixer Reliable and Wear-Resistant, In a word, when you choose us, you choose a ideal existence. Welcome to visit our factory and welcome your get! For even further inquiries, remember to usually do not hesitate to make contact with us.
Wholesale Price China Drilling Rig and Petroleum Equipment, With all these supports, we can serve every customer with quality product and timely shipping with highly responsibility. Being a young growing company, we might not the best, but we’ve been trying our best to be your good partner.
