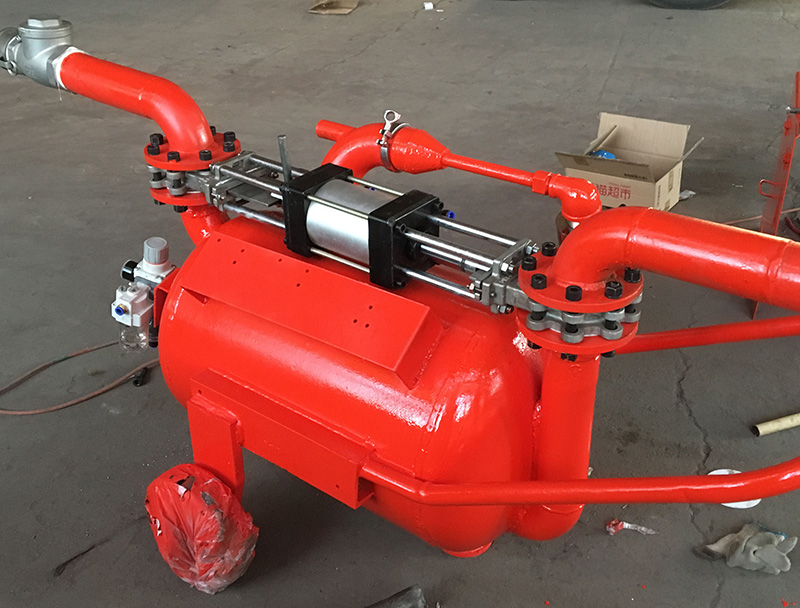

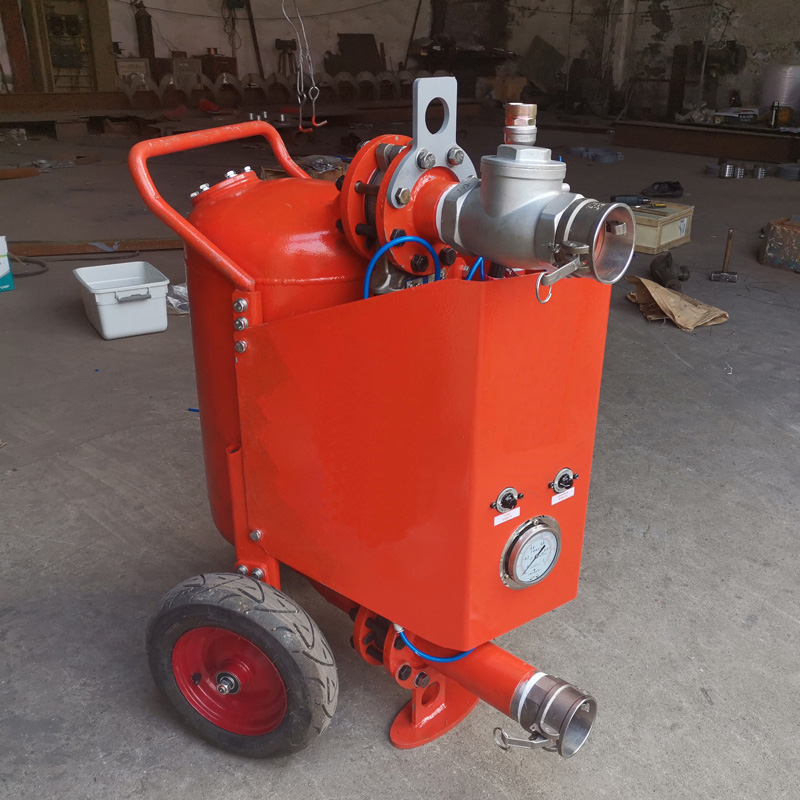

Sludge Vacuum Pump

Pneumatic vacuum transfer pump is a kind of pneumatic vacuum transfer pump with high load and strong suction, also known as solid transfer pump or drilling cuttings transfer pump. Capable of pumping solids, powders, liquids, and solid-liquid mixtures. The depth of pumping water is 8 meters, and the lift of discharged water is 80 meters. Its unique structural design enables it to operate in the most difficult environment with low maintenance rate. It can transport materials with more than 80% solid phase and high specific gravity at high speed. It has the following characteristics: the high-efficiency venturi device can generate up to 25 inches Hg (mercury) vacuum under strong air flow to suck materials, and then transport them through positive pressure, with almost no wear parts. It is commonly used for transportation of drilling cuttings, oily sludge, tank cleaning, long-distance transportation of waste suction, and transportation of minerals and wastes. The vacuum pump is a 100% aerodynamic and intrinsically safe pneumatic transportation solution, capable of conveying solids with a maximum inlet diameter of 80%. The unique patented venturi design creates a strong vacuum and high airflow, which can recover up to 25 meters (82 feet) of material and discharge up to 1000 meters (3280 feet). Because there is no internal working principle and no rotating vulnerable parts, it provides a very cost-effective solution for controlling the recovery and transfer of materials that are considered non pumpable.
