OEM/ODM Manufacturer Drilling Fluid Desilter for Oilfield Drilling Mud System

Short Description:

Drilling Mud Desilter is an economic compact desilting equipment. Desilter is used for drilling fluids solids control system.

Drilling Mud Desilter is a very important piece of equipment in the mud cleaning process. The principle of working in hydro cyclones is the same as desanders. Desilter uses smaller hydro cyclones compared to Drilling Desander for the treatment, which enables it to remove even smaller particles from the drill fluid. The smaller cones allow the desilter to remove solids hello over the 15 microns size. Each cone achieves consistently 100 GPM.

Drilling Mud Desilter is typically used after the drill fluid has been processed through the mud desander. It uses smaller hydro cyclones compared to Drilling Desander for the treatment, which enables it to remove even smaller particles from the drill fluid. The smaller cones allow the desilter to remove solids hello over the 15 microns size. Each cone achieves consistently 100 GPM. Drilling Desilter is the process of fine particle size separation. It is a very important piece of equipment in the mud cleaning process. The desilter reduces the average particle size while also removing abrasive grit from the unweighted drill fluid. The principle of working in hydro cyclones is the same as desanders. The only difference is that the drilling mud desilter makes a final cut, and the capacity of the individual cone is significantly lower. Multiple such cones are utilized for the process and manifolded into a single unit. Desilter is sized 100% – 125 % of the flow rate into the desilter. A Siphon breaker is also installed with the overflow manifold from the cones.

Send email to us

Product Detail

Product Tags

We get pleasure from an incredibly good popularity amongst our customers for our superb merchandise high-quality, aggressive rate as well as the most effective support for OEM/ODM Manufacturer Drilling Fluid Desilter for Oilfield Drilling Mud System, We persistently acquire our enterprise spirit “quality lives the organization, credit assures cooperation and preserve the motto within our minds: prospects first.
We get pleasure from an incredibly good popularity amongst our customers for our superb merchandise high-quality, aggressive rate as well as the most effective support for China Desilter and Desander, our qualify goods have good reputation from the world as its most competive price and our most advantage of after-sale service to the clients.we hope we can present a safe, environmental products and solutions and super service to our clients from all of the world and establish strategic partnership with them by our specialist standards and unremitting efforts.

Advantage of Desilter

The number of cyclone is flexible, according to customer’s needs.
Pure polyurethane cyclone is more durable, and can be exchanged with the international brand.
Desilter is designed exquisitely and easy to install.
Less vulnerable parts, and easy to maintain.
Competitive price, and cost-effective.

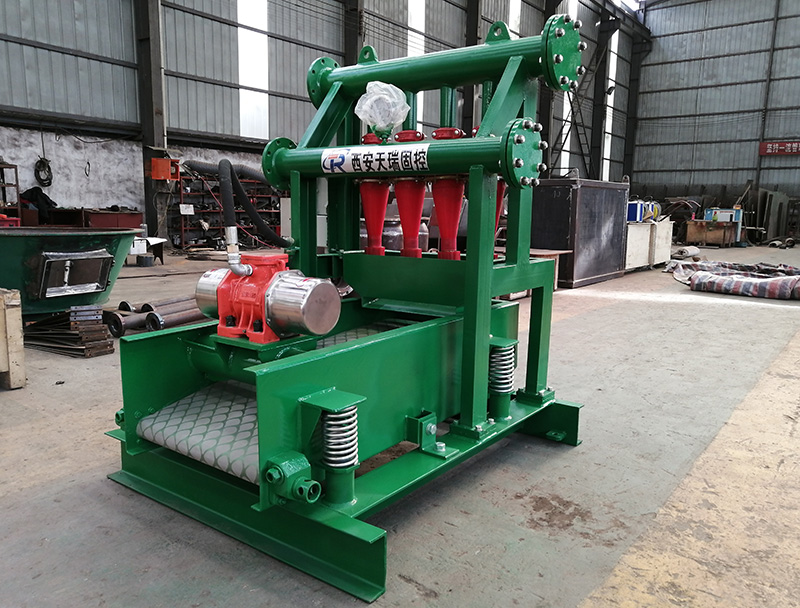

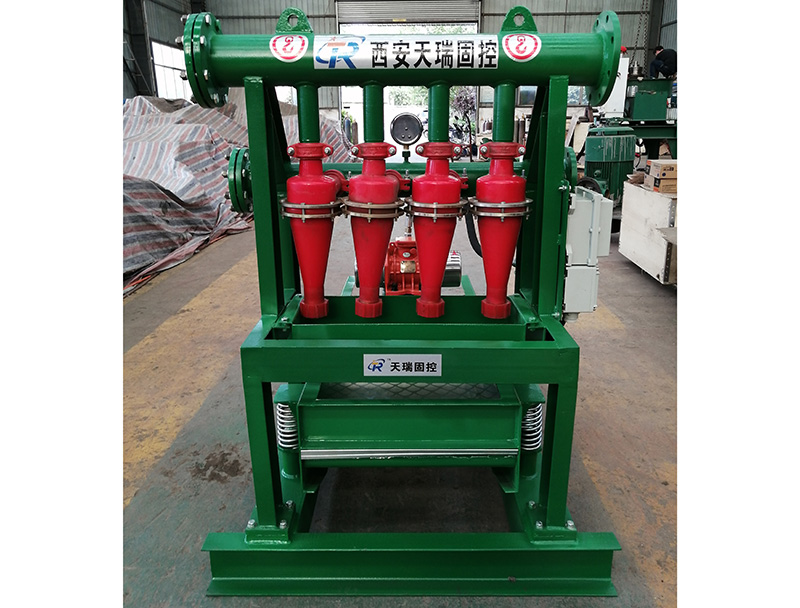

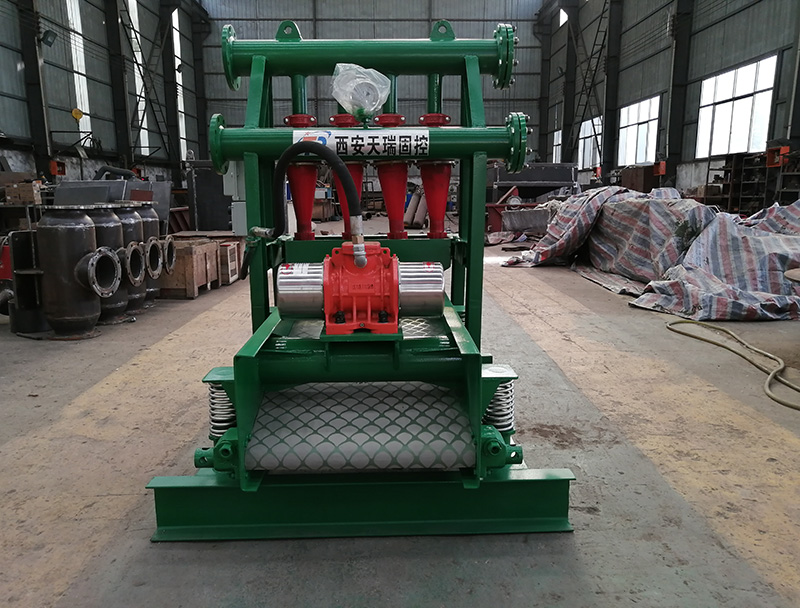

Desilter3
Desilter8
Desilter2

Mud Desilter Technical parameters

Model	TRCN100-4N/6N	TRCN100-8N	TRCN100-12N/16N	TRCN100-20N
Capacity	60 / 90 m³/h	120m³/h	180m³/h / 240m³/h	300m³/h
Cyclone Specs	4in（DN100)	4in（DN100)	4in（DN100)	4in（DN100)
Cyclone Qty	4nos / 6nos	8nons	12nons/16nons	20nons
Working Pressure	0.25-0.4mPa	0.25-0.4mPa	0.25-0.4mPa	0.25-0.4mPa
Inlet Size	DN125mm	DN125mm	DN150mm	DN150mm
Outlet Size	DN150mm	DN150mm	DN200mm	DN200mm
Separation	15um-44um	15um-44um	15um-44um	15um-44um
Bottom shaker	TRZS60	TRZS60	TRZS752	TRZS703
Dimension	1510X1360X2250	1510X1360X2250	1835X1230X1810	1835X1230X1810
Weight	550kg / 560kg	580kg	1150kg	1950kg

Mud Desilter for Drilling Fluids Solids Control

Drilling Mud Desilter is an economic compact desilting equipment. separable from 15 to 44 micron .In the drilling solid control system is used for before desander after centrifuge.

TR solids control manufacture the Drilling desilter which could replace the derrick and swaco.
We are an exporter of drilling mud desilter. TR Solids control is the designed, selling, production, service and delivery of Chinese Desilter manufacturer. We will provide the high quality mud desilter and best service.Your best drilling fluids desilter start from TR solids control.We get pleasure from an incredibly good popularity amongst our customers for our superb merchandise high-quality, aggressive rate as well as the most effective support for OEM/ODM Manufacturer Drilling Fluid Desilter for Oilfield Drilling Mud System, We persistently acquire our enterprise spirit “quality lives the organization, credit assures cooperation and preserve the motto within our minds: prospects first.
OEM/ODM Manufacturer China Desilter and Desander, our qualify goods have good reputation from the world as its most competive price and our most advantage of after-sale service to the clients.we hope we can present a safe, environmental products and solutions and super service to our clients from all of the world and establish strategic partnership with them by our specialist standards and unremitting efforts.
