OEM/ODM China Mud Cleaner/Mud Desilters for Drilling Mud Solid Control Equipment

Short Description:

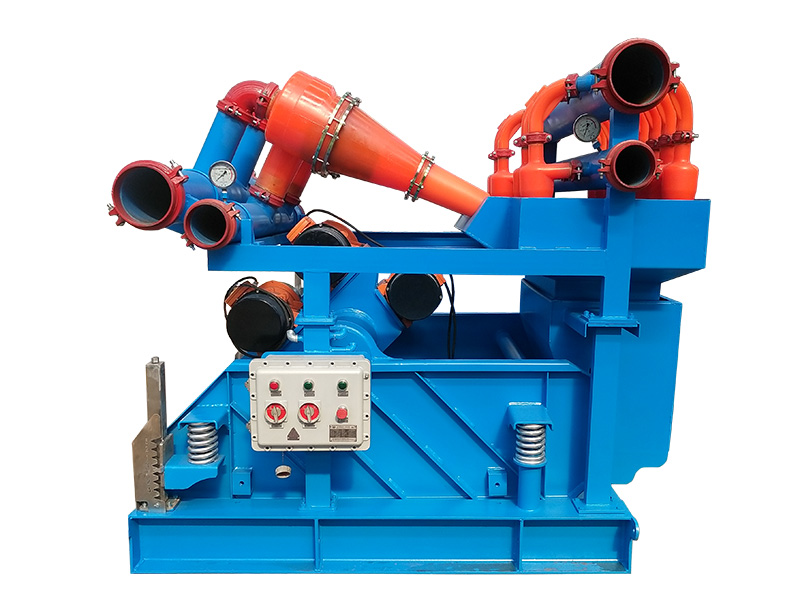

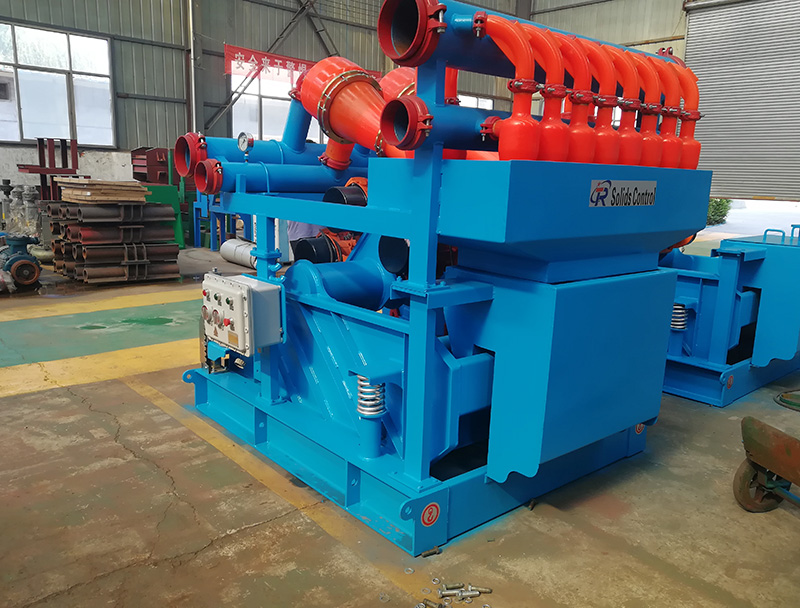

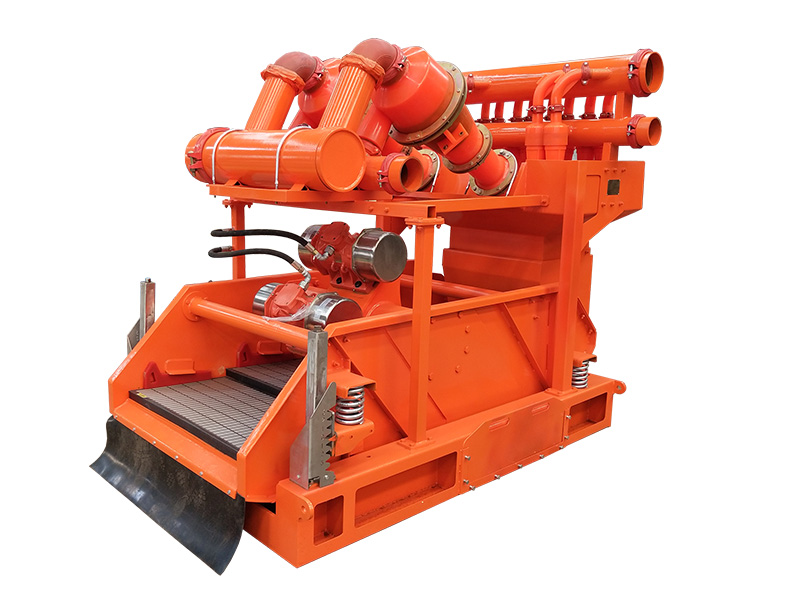

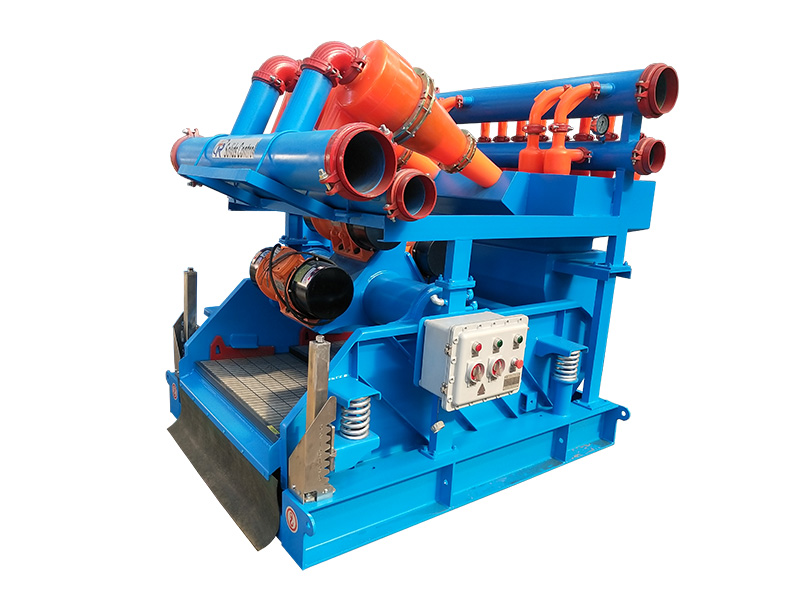

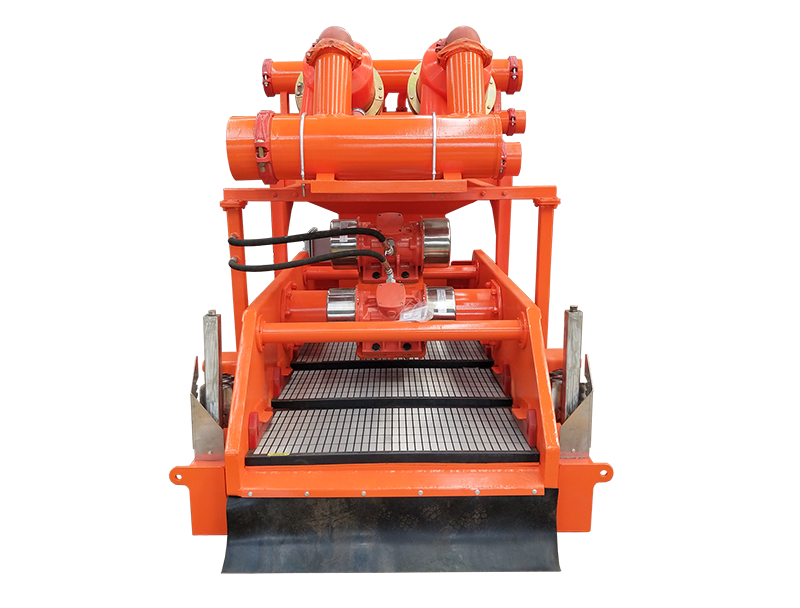

Mud Cleaner equipment is a combination of desander, desilter hydro cyclone with an underflow shale shaker. TR Solids Control is Mud Cleaner manufacture.

Mud cleaner is a versatile device that is used to separate big solid components and other slurry materials from drilled mud. In this article, we’re going to talk about the Mud Cleaner from TR Solids Control.

Mud Cleaner equipment is a combination of desander, desilter hydro cyclone with an underflow shale shaker. To overcome limitations that are present in many solid removal equipment, ‘new’ equipment was developed with the purpose of removing drilled solids from weighted muds. The Mud Cleaner does remove most of the drilled solids while also retaining the barite as well as the liquid phase present in the mud. The discarded solids are sieved to discard larger solids, and returned solids are smaller even from the screen size of the liquid phase.

Mud Cleaner is the second class and the third class solids control equipment which is the newest type to treat the drilling fluid. At the same time drilling Mud cleaner has the higher cleaning function compared with separated desander and desilter. In addition to the reasonable design process, it equals another shale shaker. Fluids mud cleaner structure is compact, it occupys small space and the function is powerful.


Product Detail

Product Tags

Our goal is to provide high quality products at competitive prices, and top-notch service to customers around the world. We are ISO9001, CE, and GS certified and strictly adhere to their quality specifications for OEM/ODM China Mud Cleaner/Mud Desilters for Drilling Mud Solid Control Equipment, We now have comprehensive goods supply as well as selling price is our advantage. Welcome to inquire about our products.
Our goal is to provide high quality products at competitive prices, and top-notch service to customers around the world. We are ISO9001, CE, and GS certified and strictly adhere to their quality specifications for China Mud Cleaner and Mud Desilter, Our mission is “Provide Goods with Reliable Quality and Reasonable Prices”. We welcome customers from every corner of the world to contact us for future business relationships and achieving mutual success!

Advantages of Mud Cleaner

1. Environmentally Efficient
The TR mud cleaner provides efficient removal of sand and silt particles larger than 20 microns, and some as small as 15 microns. Removing and drying drilled solids helps meet environmental regulations by minimizing waste generated and reducing disposal cost.

2. High Performance
Processing capacity of 1,000 gpm with the 2-12 desander and 900 gpm with the desilter concentrates solids onto a classification shaker

3. Versatile
The mud cleaner can be operated with the 2-12 desander, desilter or both to process weighted or unweighted fluid systems.

4. Extends Equipment Life
The mud cleaner helps minimize maintenance, repair and replacement of downstream equipment.

5. Reduces Operating Cost
The mud cleaner reduces sand and silt-size particles and saves liquid, thus reducing mud cost, chances of stuck pipe and lost circulation and improving rate of penetration.

6. Reduces Disposal Cost
The mud cleaner minimizes waste generated thus reducing disposal cost.

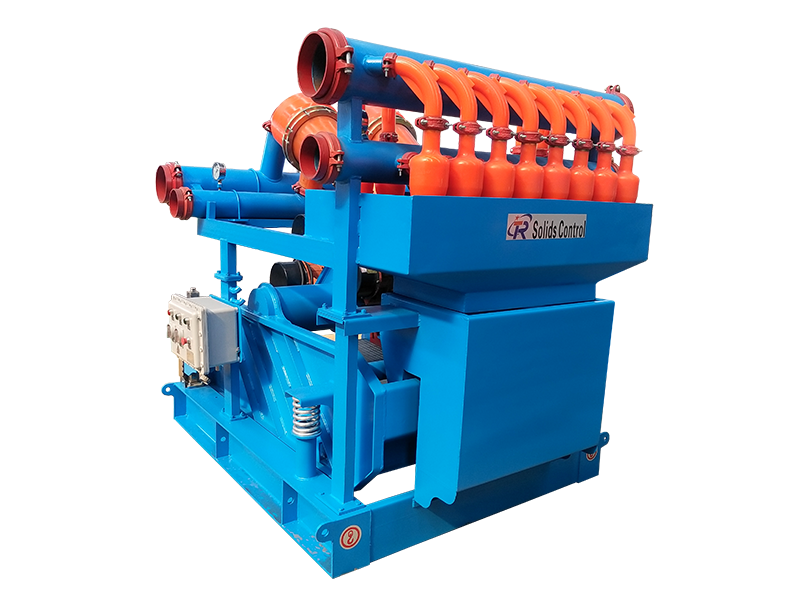

Mud-Cleaner3
dav
hdr

Specifications

Model

TRQJ200×1S-100×4N

TRQJ200×2S-100×8N

TRQJ250×2S-100×12N

TRQJ250×3S-100×20N

Treatment Capacity

60m³

120m³

240m³

320m³

Desander Cyclone Specs

8in

10in

Desander Cyclone Qty

1nos

2nos

2nos

3nos

Desilter Cyclone Specs

4in

Desilter Cyclone Qty

5nos

8nos

12nos

20nos

Working Pressure

0.25~0.4mpa

Inlet Size

DN125mm

DN150mm

DN150mm

DN200mm

Outlet Size

DN150mm

DN200mm

DN200mm

DN250mm

Separation Point

15μm~44μm

Bottom Shaker

TRZS60/N/A

TRZS752/N/A

TRZS752/N/A

TRZS703/N/A

Dimension

1510×1160X2000mm

1835×1230×1810mm

1835×1230×1810mm

2419×2150×2147mm

Weight

600kg

980kg

1250kg

2350 kg

Mud Cleaner for Drilling Fluids Solids Control

The Mud Cleaner plays a vital role in the drilling mud system. It is effective when applied directly after barite is added to the mud system. The continuous use of the mud cleaner ensures the removal of solid, which after that breaks down into silt and clay sizes. It prevents any kind of drill bit solids accumulation in the equipment.

The Mud Cleaner is a mud cleaning equipment with a compact structure design and small footprint but with a powerful function.

We are an exporter of Mud Cleaner. Our factory approval the API, drilling mud cleaner have the API certification. TR solids control is the designed ,selling, production, service and delivery of Chinese mud cleaner manufacturer. We will provide the high quality drilling mud cleaner and best service. Your best fluids mud cleaner start from TR solids control.Our goal is to provide high quality products at competitive prices, and top-notch service to customers around the world. We are ISO9001, CE, and GS certified and strictly adhere to their quality specifications for OEM/ODM China Mud Cleaner/Mud Desilters for Drilling Mud Solid Control Equipment, We now have comprehensive goods supply as well as selling price is our advantage. Welcome to inquire about our products.
OEM/ODM China China Mud Cleaner and Mud Desilter, Our mission is “Provide Goods with Reliable Quality and Reasonable Prices”. We welcome customers from every corner of the world to contact us for future business relationships and achieving mutual success!
