ODM Manufacturer High Chrome Wear Resistant Submersible Vertical Slurry Sand Pump

Short Description:

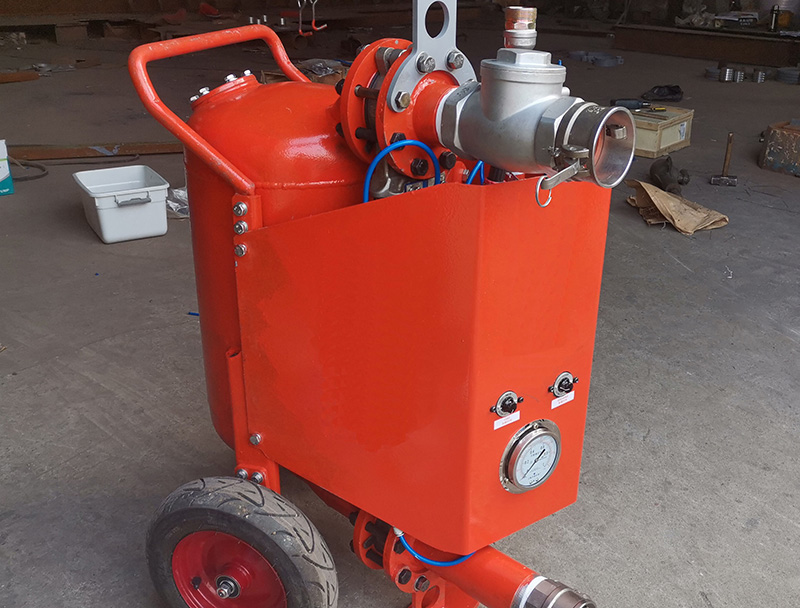

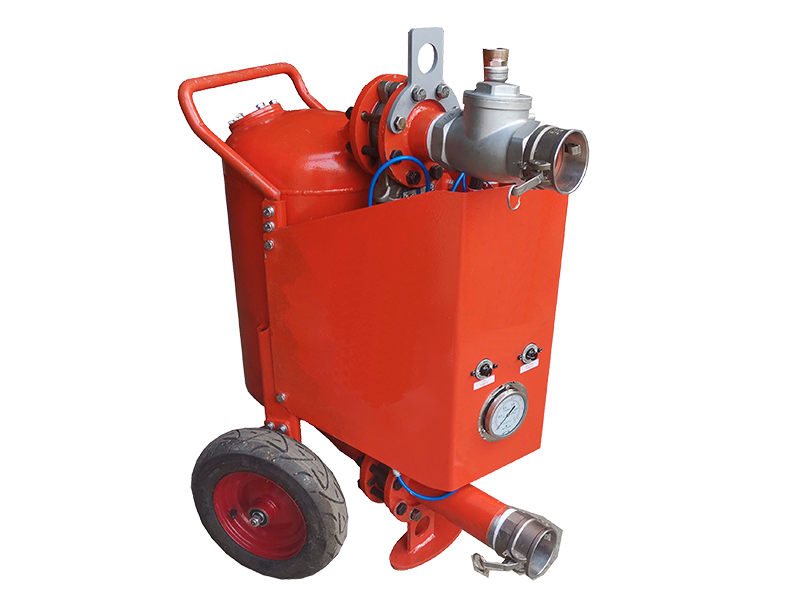

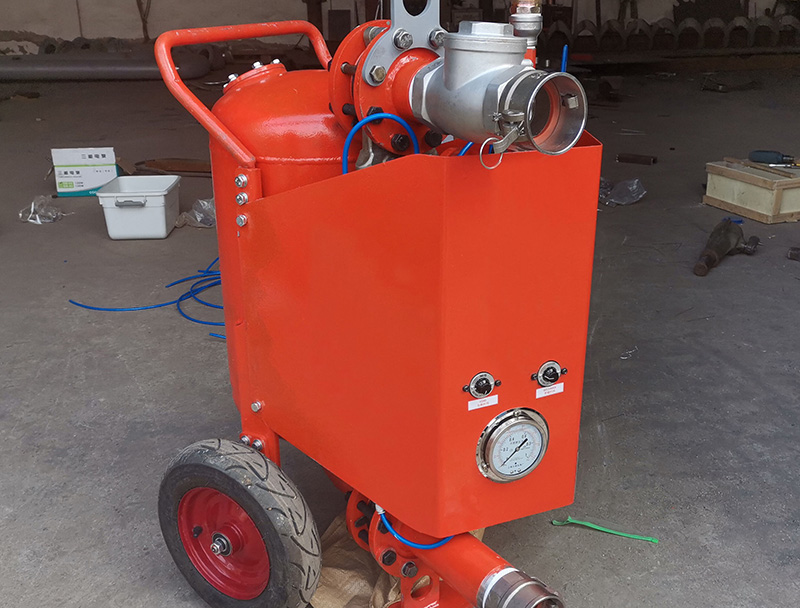

Pneumatic vacuum transfer pump is a kind of pneumatic vacuum transfer pump with high load and strong suction, also known as solid transfer pump or drilling cuttings transfer pump. Capable of pumping solids, powders, liquids, and solid-liquid mixtures. The depth of pumping water is 8 meters, and the lift of discharged water is 80 meters. Its unique structural design enables it to operate in the most difficult environment with low maintenance rate. It can transport materials with more than 80% solid phase and high specific gravity at high speed. It has the following characteristics: the high-efficiency venturi device can generate up to 25 inches Hg (mercury) vacuum under strong air flow to suck materials, and then transport them through positive pressure, with almost no wear parts. It is commonly used for transportation of drilling cuttings, oily sludge, tank cleaning, long-distance transportation of waste suction, and transportation of minerals and wastes. The vacuum pump is a 100% aerodynamic and intrinsically safe pneumatic transportation solution, capable of conveying solids with a maximum inlet diameter of 80%. The unique patented venturi design creates a strong vacuum and high airflow, which can recover up to 25 meters (82 feet) of material and discharge up to 1000 meters (3280 feet). Because there is no internal working principle and no rotating vulnerable parts, it provides a very cost-effective solution for controlling the recovery and transfer of materials that are considered non pumpable.

Send email to us

Product Detail

Product Tags

“Sincerity, Innovation, Rigorousness, and Efficiency” is the persistent conception of our company for the long-term to develop together with customers for mutual reciprocity and mutual benefit for ODM Manufacturer High Chrome Wear Resistant Submersible Vertical Slurry Sand Pump, We’re devoted to offer expert purification technology and solutions for you!
“Sincerity, Innovation, Rigorousness, and Efficiency” is the persistent conception of our company for the long-term to develop together with customers for mutual reciprocity and mutual benefit for China Submersible Sludge Pump and Submersible Mud Pump, Customer satisfaction is our goal. We’ve been looking forward to cooperating with you and providing our best services to suit your needs. We warmly welcome you to contact us and you should feel free to contact us. Browse our online showroom to see what we can do for you personally. And then E-mail us your specifications or inquiries today.

Advantages

The pump can be operated by one person on duty;
Super vacuum can absorb materials at 50m;
All flow-through parts of the pump body are almost free of wear;
Super large suction can absorb materials with a diameter of more than 7cm;
Compressed air can be supplied centrally and transported remotely;
Ultra long distance transportation, which can realize ultra long distance of over 1000m;
The pump can operate indefinitely for a long time without limit;
High applicability to materials: powder, thinner, viscous material, sewage, oil stain, etc;
Full pneumatic control has the ability of fire prevention, explosion-proof and moisture-proof, and can be used in high-temperature occasions;
The pump is controlled by manual, automatic and remote control to meet more use scenarios;
Pneumatic control has high reliability and long service life. The effective action times of electrical components are about one million times, and the Service life of solenoid valves is more than 200 million times;

Sludge-Vacuum-Pump_detail

Sludge-Vacuum-Pump2

Technical Parameters

Model	TRSP-80L	TRSP-40L	TRSP-25W	TRSP-20L	TRSP-10L
Maximum conveying capacity	80m³/h	40m³/h	25m³/h	20m³/h	10m³/h
Feed and discharge diameter	4 “DN100	4 “DN100	3″DN80	3″DN80	3″DN80
Suction distance	≤50m	≤50m	≤50m	≤50m	≤50m
Discharge distance	≤1000m	≤1000m	≤550m	≤550m	≤550m
Walking form	fixed	fixed	move	move	move
Control form	Hand self integration	Hand self integration	automatic	Hand self integration	automatic
Overflow diameter	≤70mm	≤70mm	≤50mm	≤50mm	≤50mm
Pressure	650-800Kpa	650-800Kpa	550-700Kpa	550-700Kpa	550-700Kpa
Air supply	13m³/min	13m³/min	6.5m³/min	6.5m³/min	5.2m³/min
Size	3200×1500×2000mm	1600×1500×2000mm	2000×1000×1100mm	1000×800×1400mm	900×800×1400mm
Weight	1500kg	910kg	300kg	270kg	230kg
Applicable materials	High viscosity material / powder solid material /
Vacuum	25inch HG/85Kpa
Valve	Made in Germany
Air control	Made in Japan, control and operation shall be oper

“Sincerity, Innovation, Rigorousness, and Efficiency” is the persistent conception of our company for the long-term to develop together with customers for mutual reciprocity and mutual benefit for ODM Manufacturer High Chrome Wear Resistant Submersible Vertical Slurry Sand Pump, We’re devoted to offer expert purification technology and solutions for you!
ODM Manufacturer China Submersible Sludge Pump and Submersible Mud Pump, Customer satisfaction is our goal. We’ve been looking forward to cooperating with you and providing our best services to suit your needs. We warmly welcome you to contact us and you should feel free to contact us. Browse our online showroom to see what we can do for you personally. And then E-mail us your specifications or inquiries today.
