High Quality Linear Motion Shale Shaker Replace Mongoose for Drilling

Short Description:

Mud Vacuum Degasser and Drilling Vacuum Degasser are special purpose product for gas treatment in drilling fluids.

Mud Vacuum Degasser is the most common form of degassing systems used in the oil & gas industry. Drillng fluid is pulled into the tank by vacuum action. The fluid rises inside the tank and is distributed over a series of plates which releases the gas bubbles from the drilling fluid.

Mud Vacuum Degasser is a special purpose product for gas treatment in drilling fluids. This unit is positioned downstream from shale shaker, mud cleaner and mud gas separator, while hydrocyclones and centrifuges follow in the arrangement. It is used to remove small entrained gas bubbles left in the mud by mud gas separator.

Mud Vacuum Degasser is also called mud/Gas separator. Mud/gas separators (Degasser) is the first units of solids control equipment arranged to treat drilling mud. As such, they process all of the drilling mud from the flow line before the mud reaches the primary shale shakers.

Send email to us

Product Detail

Product Tags

Innovation, excellent and reliability are the core values of our organization. These principles today extra than ever form the basis of our success as an internationally active mid-size corporation for High Quality Linear Motion Shale Shaker Replace Mongoose for Drilling, Your inquiry are going to be highly welcomed plus a win-win prosperous development are what we are expecting.
Innovation, excellent and reliability are the core values of our organization. These principles today extra than ever form the basis of our success as an internationally active mid-size corporation for China Shale Shaker and Oli Drilling Shale Shaker, Our company adheres to the spirit of “lower costs, higher quality, and making more benefits for our clients”. Employing talents from the same line and adhering to the principle of “honesty, good faith, real thing and sincerity”, our company hopes to gain common development with clients from both at home and abroad!

Basic Information

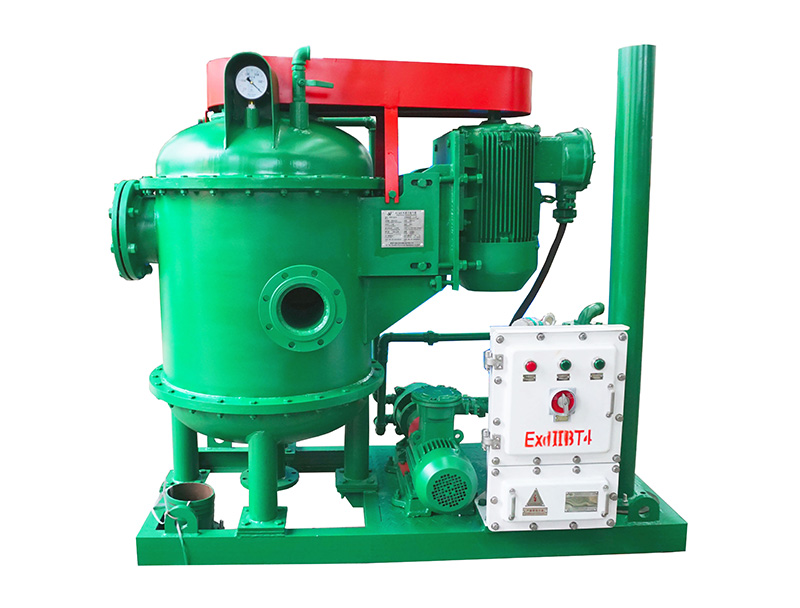

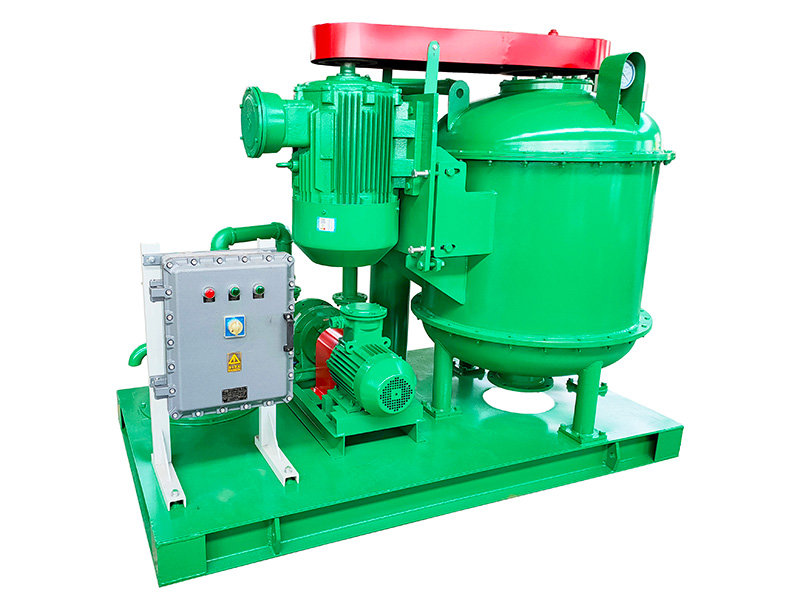

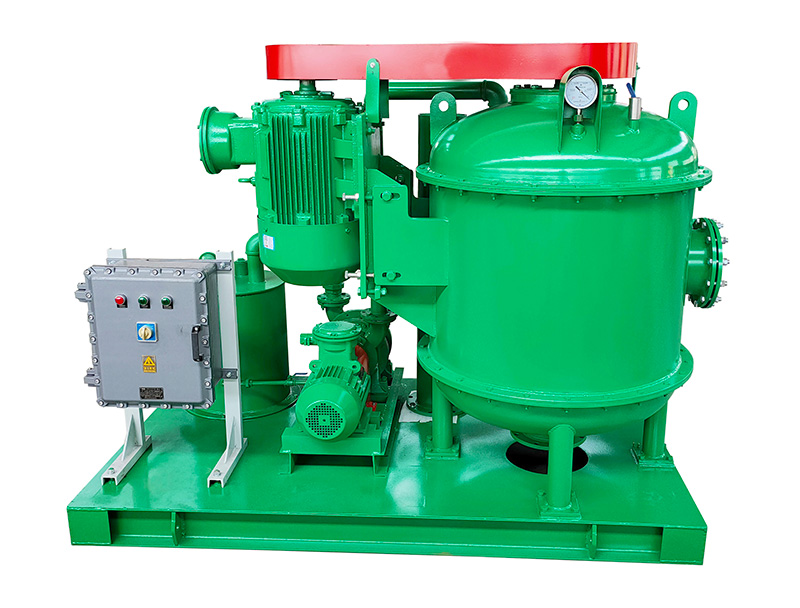

Drilling vacuum degasser plays an important role in removing dissolved gases and gas bubbles. The gas like methane, CO2 and H2S need to be released and broken from the mud to the surface in drilling fluids. TRZCQ vacuum degasser is simple in design and operation. It is one of solids control and waste management equipment used in oil and gas drilling industry.

Vacuum-Degasser-6
Vacuum-Degasser-5
Vacuum-Degasser-7

Features of Mud Vacuum Degasser

Water ring type of mud vacuum pump work is suitable for flammable and explosive gas suction.
Gas-water separator in drilling vacuum degasser saves water and environment-friendly.
Scientific and reasonable design for structure achieves effective separation of gas and liquid.
Mud vacuum degasser has high degassing efficiency up to 95%.
Self-priming device enables it to pump drilling fluids without centrifugal pump.
Belt drive guarantees the long time working time without trouble.

Vacuum-Degasser-detail_1
Vacuum-Degasser-detail_3
Vacuum-Degasser-detail_2

Drilling Vacuum Degasser Technical Parameters

Model	TRZCQ240	TRZCQ270	TRZCQ300	TRZCQ360
Body Diameter	700mm	800mm	900mm	1000mm
Handling Capacity	240 m³/h	270 m³/h	300 m³/h	360 m³/h
Vacuum Degree	-0.030-0.045Mpa	-0.030-0.050Mpa	-0.030-0.045Mpa	-0.030-0.045Mpa
Transmission Ratio	1.68	1.68	1.68	1.72
Degassing Efficiency	≥95%	≥95%	≥95%	≥95%
Motor Power	15kW	22kW	30kW	37Kw
Vacuum Pump Power	2.2kW	3kW	4kW	7.5kW
Impeller Speed	860r/min	870r/min	876r/min	880r/min
Dimension	1750×860×1500mm	2000×1000×1670mm	2250×1330×1650mm	2400×1500×1850mm
Weight	1100kg	1350kg	1650kg	1800kg

We are an exporter of Mud Vacuum Degasser. TR solids control is the designed, selling, production, service and delivery of Chinese Mud Vacuum Degasser manufacturer. We will provide the high quality Drilling Vacuum Degasser and best service. Your best fluids Drilling Vacuum Degasser start from TR solids control.Innovation, excellent and reliability are the core values of our organization. These principles today extra than ever form the basis of our success as an internationally active mid-size corporation for High Quality Linear Motion Shale Shaker Replace Mongoose for Drilling, Your inquiry are going to be highly welcomed plus a win-win prosperous development are what we are expecting.
High Quality China Shale Shaker and Oli Drilling Shale Shaker, Our company adheres to the spirit of “lower costs, higher quality, and making more benefits for our clients”. Employing talents from the same line and adhering to the principle of “honesty, good faith, real thing and sincerity”, our company hopes to gain common development with clients from both at home and abroad!
