We goal to see high-quality disfigurement from the production and provide the best assistance to domestic and overseas prospects wholeheartedly for Good Wholesale Vendors Mining Polyurethane Screen Mesh, Vibrating Sieves, Vibrating Screen Mesh, In case you are intrigued in almost any of our merchandise, remember to will not hesitate to make contact with us and take the initial step to create up a prosperous enterprise romance.
We goal to see high-quality disfigurement from the production and provide the best assistance to domestic and overseas prospects wholeheartedly for China Pyramid Shale Shaker Screen and Flc2000 Shale Shaker Screen, We adhere to the honest, efficient, practical win-win running mission and people-oriented business philosophy. Excellent quality, reasonable price and customer satisfaction are always pursued! If you are interested in our products, just try to contact us for more details!

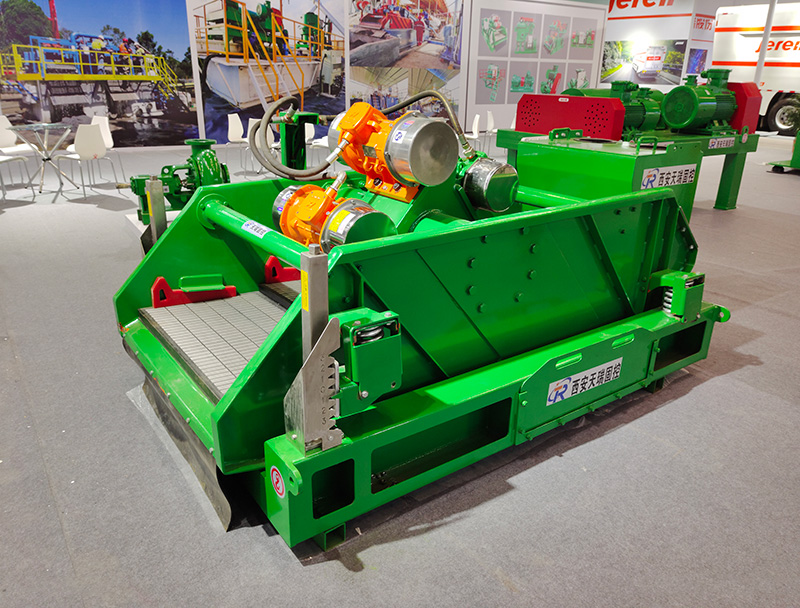

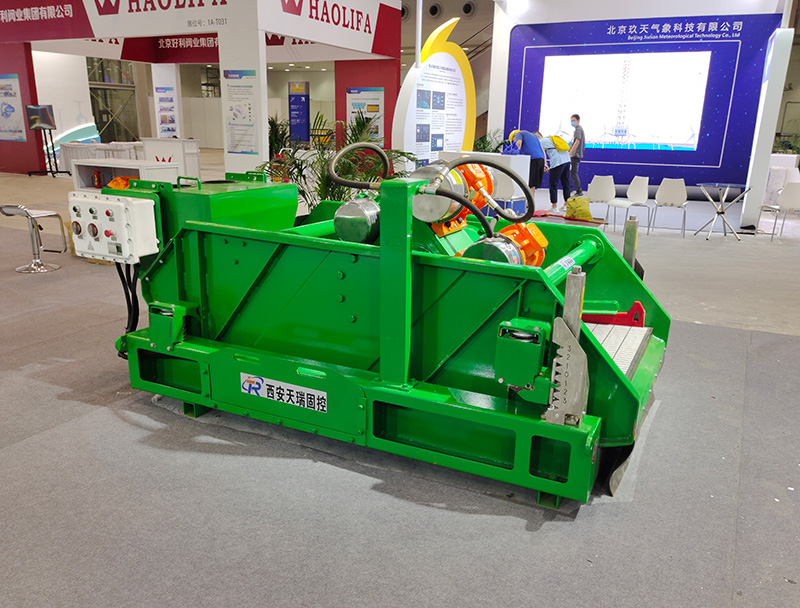

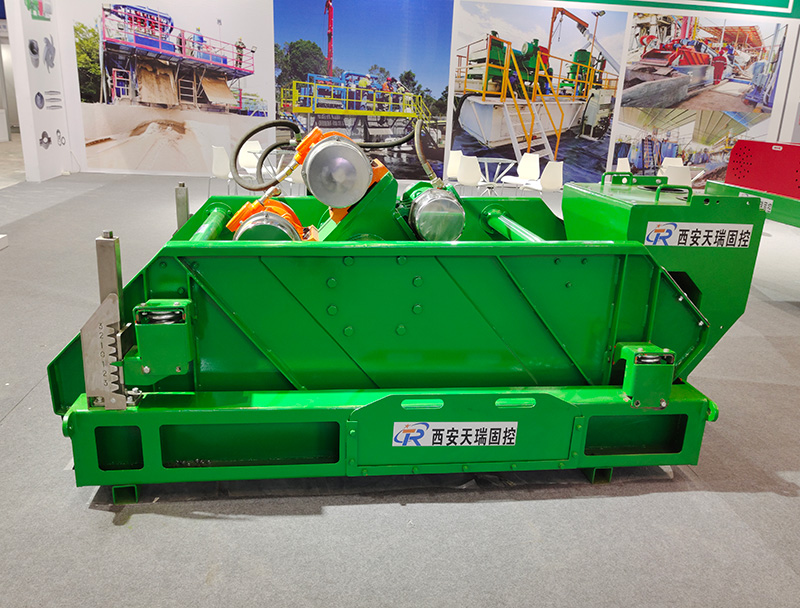

Mud Shale Shaker use Italy Oli vibration motor or USA Martin motor. Vibration motor excitation force can be adjusted To meet different viscosity of the mud.
TR shale shaker uses “solidworks” to design, which makes vibration force through the center of drilling shale shaker, and makes the trajectory of linear shale shaker be balanced to ensure the separation effect of drilling shale shaker.
linear motion shaker available to choose Brandt and Derick screen, so as to meet the customer’s interchangeability of screen.
TR Solid Control is a professional manufacturer for producing drilling mud shale shaker. TR Series Mud Shale Shaker is devided into linear motion and balanced elliptical as per the vibration locus. Different models be named on the basis of the different capacity.
Model |
TRZS703 |
TRZS2000 |
TRZS584 |
Vibrating Model |
Linear |
Linear |
Linear |
Motor Power |
2×1. 5KW |
2×1. 72KW |
2×1. 72KW |
Vibrating Strength |
≤7. 0G |
≤7. 5G |
≤7. 5G |
Amplitude |
6. 0~7. 2mm |
6. 0~7. 2mm |
|
Capacity |
527GPM |
615GPM |
615GPM |
Deck Adjustment |
-1°~5° |
-1°~5° |
-1°~5° |
Screen of Deck |
3 |
3 |
4 |
Electric |
380V/50HZ, 460V/60HZ or Customized |
||
Decibels |
<85db |
<85db |
<85db |
Ex Standard |
ExdIIBt4 / IEC EX/ ATEX |
||
Dimension |
2800X1785X1750 |
2800X1600X1690 |
2800X1600X1690 |
Weight |
1550kg |
1850kg |
1750kg |
Remarks |
Treating capacity test from mud 1. 2g/cm ³density, viscosity45s﹠60mesh screen |
We are an exporter of Drilling Mud Shale Shaker. Our factory approval the API, shale shakers have the API certification. TR solids control is the designed, selling, production, service and delivery of Chinese drilling fluids shale shaker manufacturers. We will provide the high quality shale shakers and best service. Your best shale shaker start from TR solids control.We goal to see high-quality disfigurement from the production and provide the best assistance to domestic and overseas prospects wholeheartedly for Good Wholesale Vendors Mining Polyurethane Screen Mesh, Vibrating Sieves, Vibrating Screen Mesh, In case you are intrigued in almost any of our merchandise, remember to will not hesitate to make contact with us and take the initial step to create up a prosperous enterprise romance.
Good Wholesale Vendors China Pyramid Shale Shaker Screen and Flc2000 Shale Shaker Screen, We adhere to the honest, efficient, practical win-win running mission and people-oriented business philosophy. Excellent quality, reasonable price and customer satisfaction are always pursued! If you are interested in our products, just try to contact us for more details!
