Drilling waste management for Drilling Cutting

Short Description:

Drilling waste management is used for taking drilling fluids from the drilling cuttings and clean the fluids for resuse.

Drilling waste management system are drying shaker, vertical cutting dryer, decanter centrifuge, screw conveyor, screw pump and mud tanks. The drilling waste management can effectively control the moisture content (6%-15%) and oil content (2%-8%) in drilling cuttings and stabilizes the liquid phase performance.

Drilling waste management system, also called as drill cutting treatment system or drilling cutting management system. According to different applications, it can be classified as water-based drilling waste management system and oil-based drilling waste management system. The main system equipments are drying shaker, vertical cutting dryer, decanter centrifuge, screw conveyor, screw pump and mud tanks. The drilling waste management system can effectively control the moisture content (6%-15%) and oil content (2%-8%) in drilling cuttings and stabilizes the liquid phase performance.

TR drilling waste management is used for taking drilling fluids from the drilling cuttings and clean the fluids for resuse. It is to maximize the recycling of drilling fluids, and minimize the drilling waste in order to save cost for operators.


Product Detail

Product Tags

Features of Drilling waste management system

1. For oil based drilling cuttings, normally it can reduce the oil on the cuttings to 3% to 5%.
2. For water based drilling cuttings, normally it can reduce the moisture content for easy transportation.
3. Recycling drilling fluids for reuse to save cost .
4. Reduce the drilling waste quantity to save money on the disposal or further treatment.

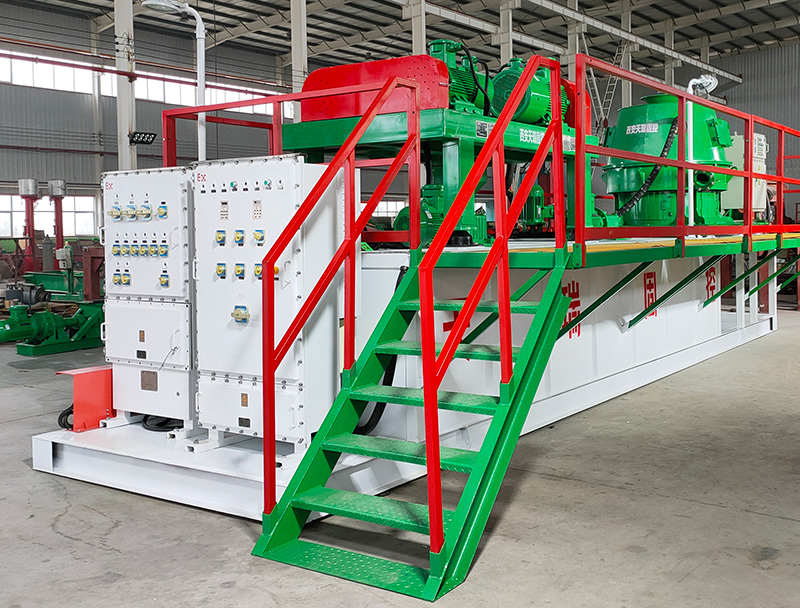

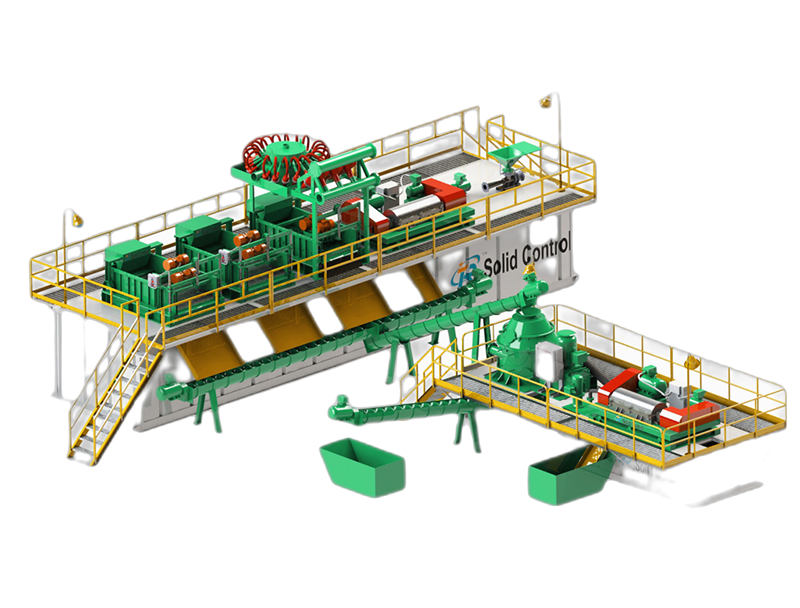

Drilling-waste-management-system1
Drilling-waste-management-system2
Drilling-waste-management-system2

Specifications

S/N S/N Description
1 Vertical Cuttings Dryer TRCD930 with option for VFD or fixed speed
2 Decanter Centrifuge TRGLW355Centrifuge 14inch bowl,Optional model as below:
TRGLW355 Centrifuge with VFD drive.
TRGLW355 standard with fixed speed
3 Screw Pump Two sets TRG30A-075 Screw Pump with capacity:30m³/h for each pump.
One for taking fluids from catching tank to feed the decanter centrifuge,the other for flushing the Vertical dryer.
4 Skid with catching tank Fast move skid for mounting all the equipment
One Catching tank with capacity:4m³ for catching fluid from vertical cuttings dryer.
5 Telescopic Skid Two telescopic skid with walkways and handrails for safe operation.
One for mounting the decanter centrifuge to a higher position in order to allow the centrifuge discharged fluids feed to active mud system by gravity.
The other telescopic skid for mounting and adjusting the height of the vertical cutting dryer to allow the discharge of drying cuttings
6 Electric Cradle 0.5 Tons electric cradle for lifting the components of vertical dryer
7 Electric Control System Two lighting system,electrical control boxes and cables and plugs for operation the complete system.

1. Screw conveyor or vacuum transfer pump to feed material to vertical cutting dryer.
2. Vertical cutting dryer handle the oil based mud to less than 5% OOC(oil on cuttings),cuttings are discharged, oil are recycled.
3. Decanter centrifuge recover the useful drilling fluids from the mud.
4. TR Solid Control is the professional API&ISO certified solids control and drilling waste management system including complete equipments manufacturer in China.
Welcome customers from all over the world to visit us and cooperate with us!
